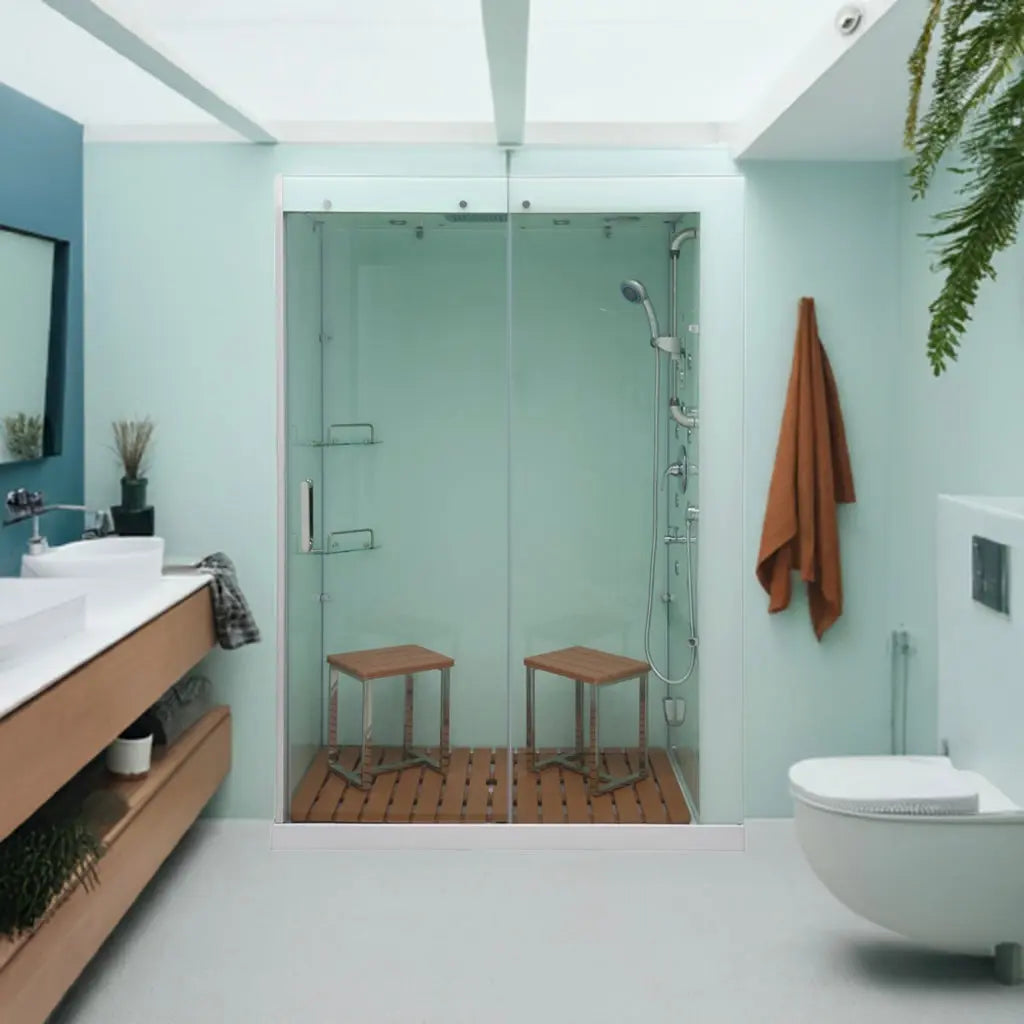

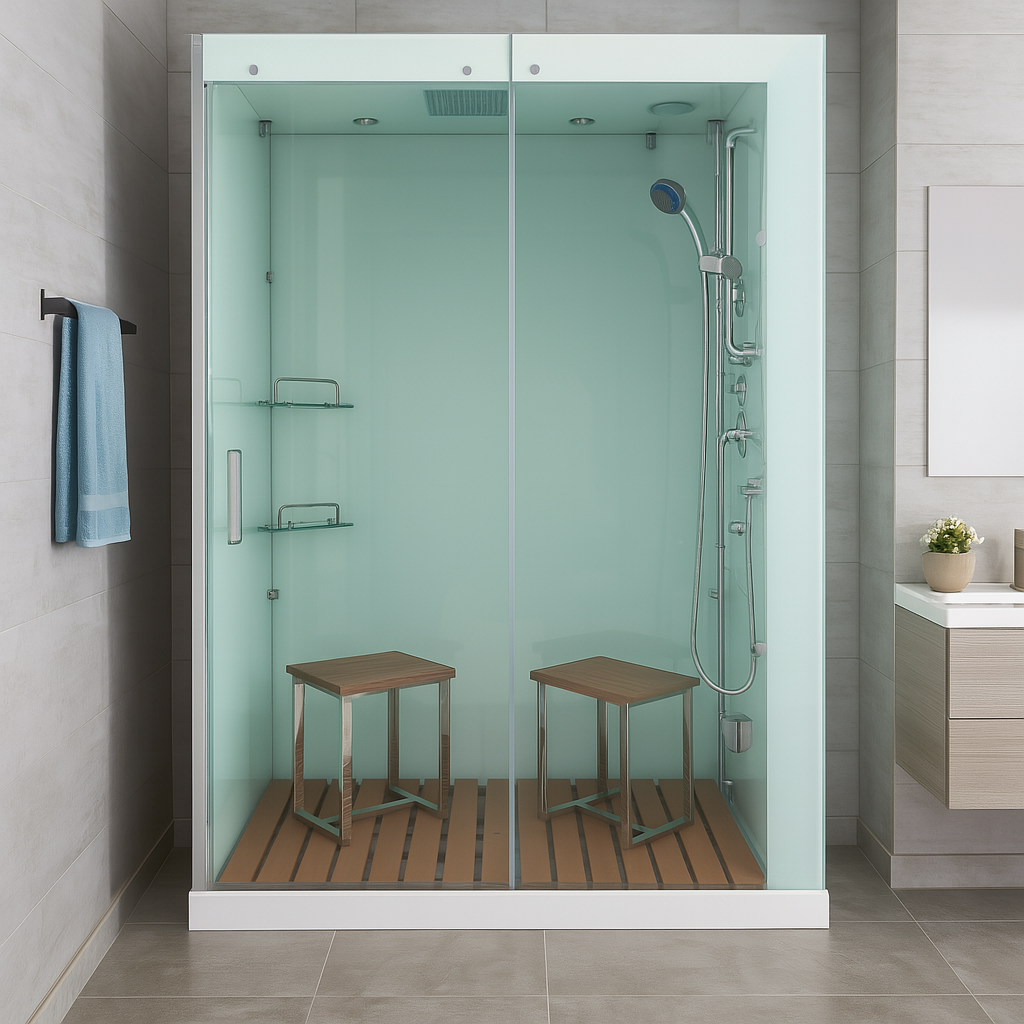

White Venus Plus-R Steam Shower

GENERAL INFORMATION

• Units arrive in panels and are assembled on-site using screws, nuts, and bolts.
• Assembly should take place inside the bathroom for added convenience.
• An access panel area is recommended for easy maintenance.
• Note: Shower bases may require mortar for leveling. It's advisable to have the base on-site before preparing the drain location.

TECHNICAL INFORMATION

• Materials: Tempered glass
• HW6028S Dimensions: 59" x 40" x 86" H
• Steam Generator Dimensions: 19.5" L x 6.5" W x 14.5" H
• Electrical Requirements: 220-volt, 10-2 wire with 30-amp GFCI breaker (2 hot lines and 1 ground line)
• Water Inlet and Drain Valves: Require ½ inch NPT fittings

PLUMBING REQUIREMENTS

• The unit comes with hot and cold, metal braided ½ inch water supply hoses featuring ½ inch national pipe thread.
• Install hot and cold shutoff valves with ½ inch male national pipe thread (not included).
• Connect supply hoses from the faucet manifold to the shutoff valves.
• All water jet features are pre-plumbed with reinforced braided flexible supply hoses.
• Check all fixtures and fittings for tightness, as they may loosen during transportation. An access panel is recommended.

TECHNICAL DATA

• Materials: Tempered Glass
• Power Supply: 220V, 6kW
• Steam Ready: 5 Minutes

• 3.5 kW Quick-Heating Self-Draining Steam Generator with Aromatherapy Cup
• Two-Person Steam and Shower Enclosure
• Dimensions: 59" x 40" x 86"
• Sliding Door
• Low Threshold Base: 2.75" H included
• 8 Body Massage Jets
• Right-Hand Drain
• Handheld Shower: Various massage settings and adjustable height bracket
• 8-Inch Wide Rainfall Shower: Provides a refreshing water experience
• Built-In Control Keypad
• FM Radio
• Bluetooth Audio System: Hands-free phone calls
• 2 Removable Benches
• Accessory Rack
• UPC Certified Thermostatic/Anti-Scald Faucet - Limited Lifetime Warranty
• Chromotherapy LED Lighting: Multiple color options for a soothing atmosphere
