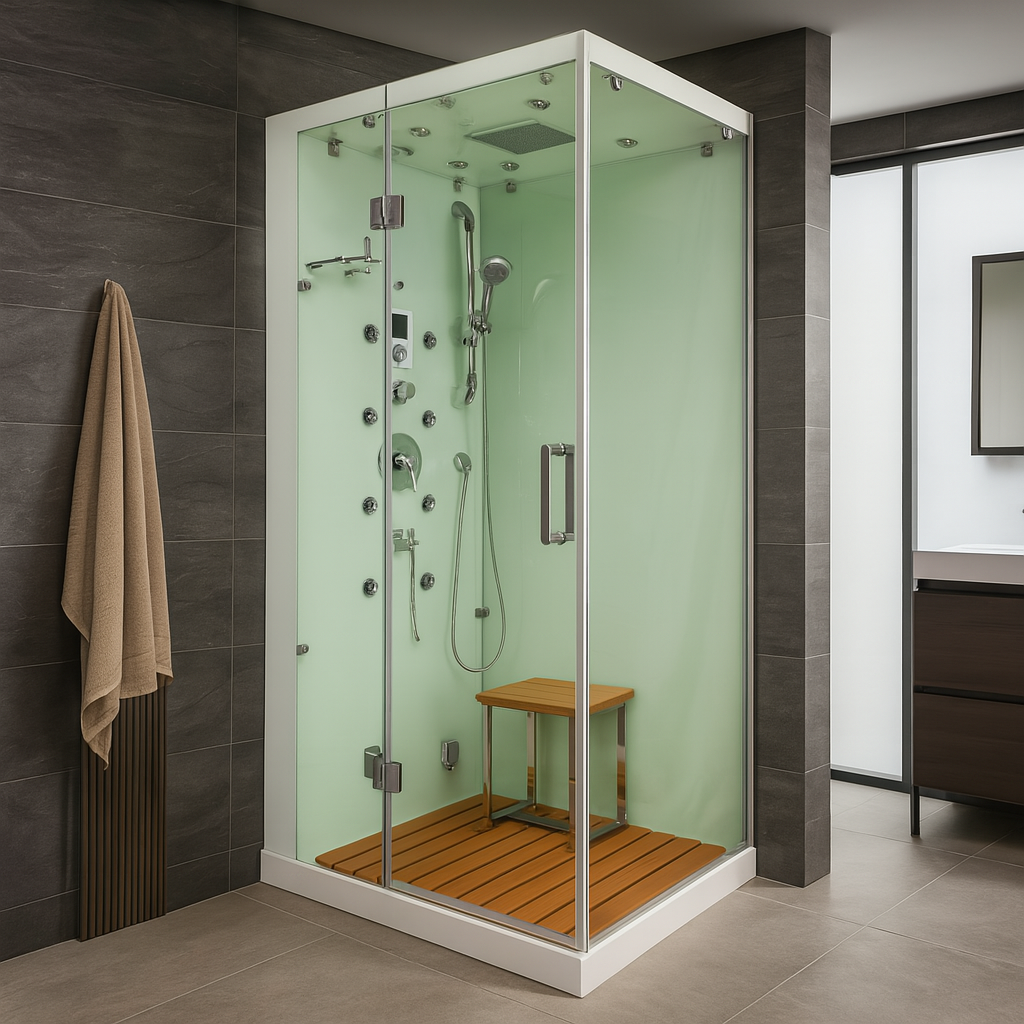

White Jupiter Plus-L Steam Shower
White Jupiter Plus-L Steam Shower
Couldn't load pickup availability
- Description
- Specifications
- Features
- Dimensions
- Installation & Operation Manual

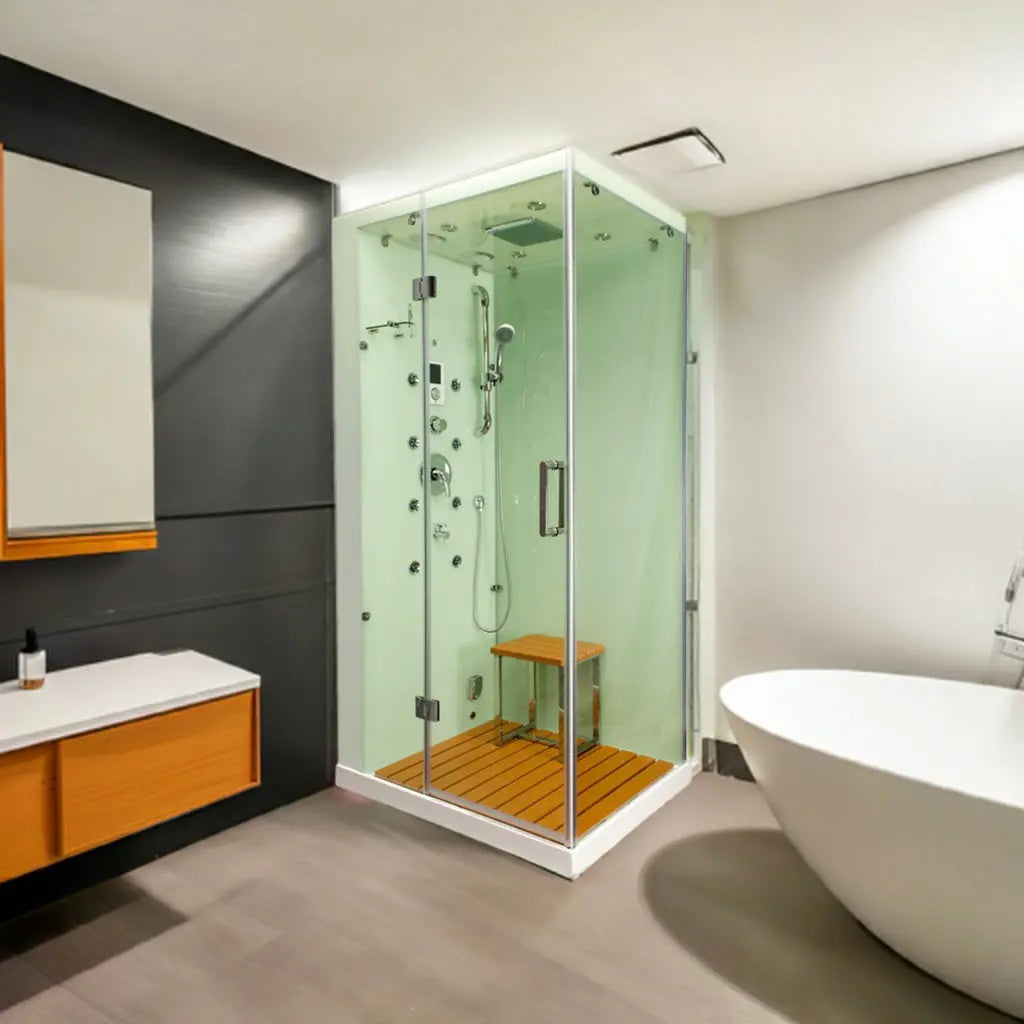

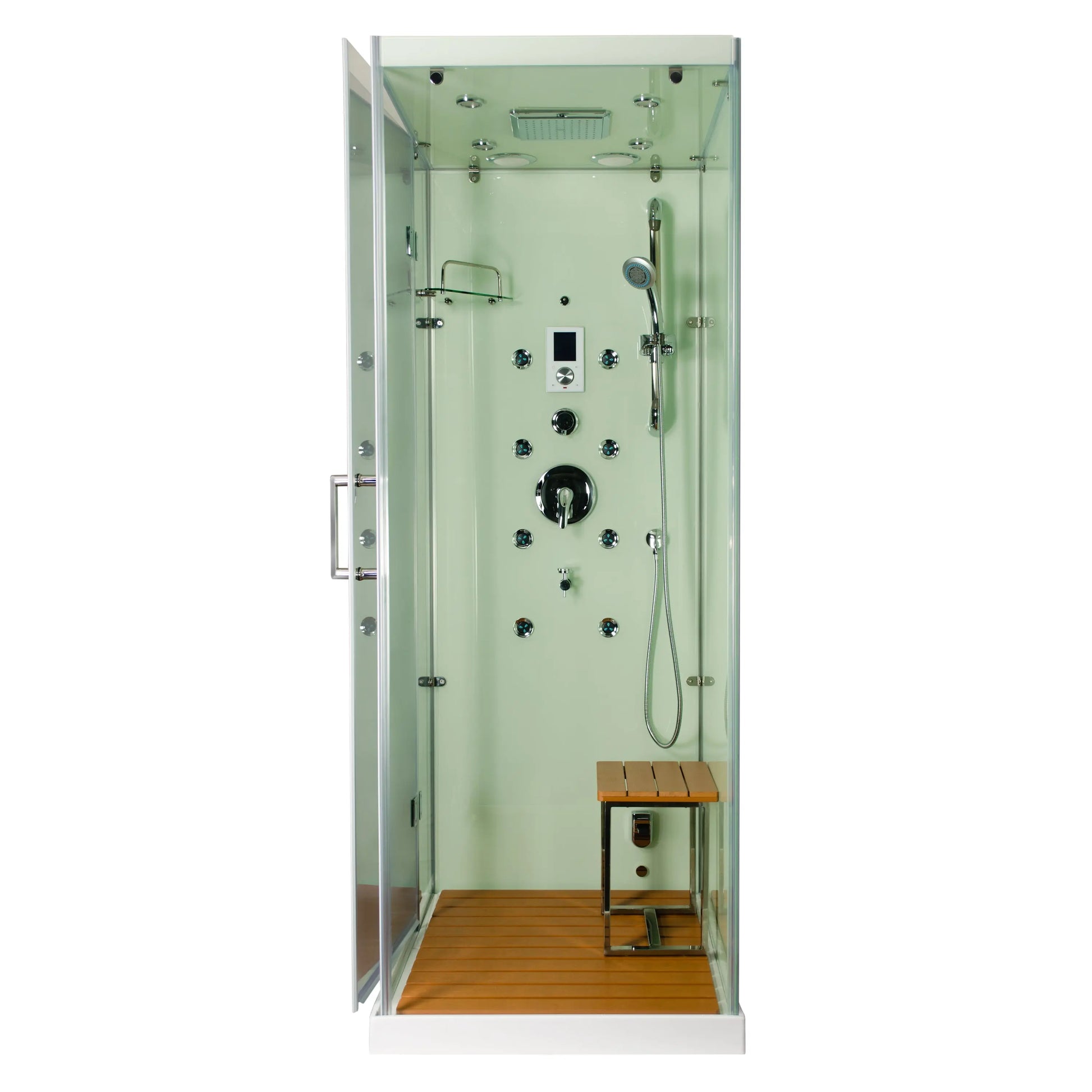

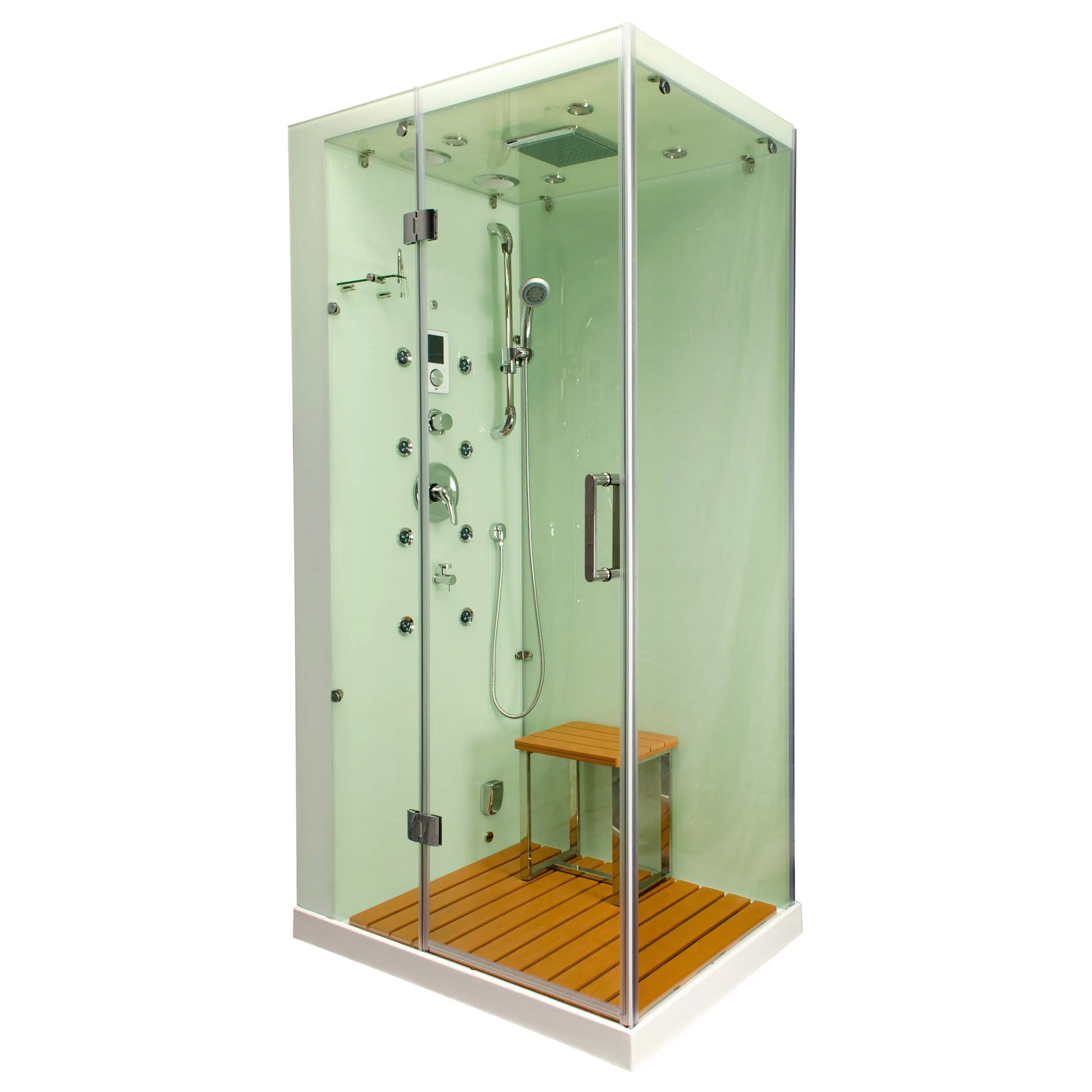

Looking for a luxurious and innovative way to unwind every day? The Jupiter Plus Steam Shower is the perfect solution! This one-person corner steam shower offers ample space for your comfort. It features a 3.5 Quick-Heating Steam Generator with a built-in Auto Drain and Aromatherapy Cup, allowing you to heat your shower quickly, ensure fresh water for each steam session, and enhance your experience with soothing aromatherapy oils. A new addition to the Jupiter Plus is the Bluetooth Audio System, enabling hands-free incoming phone calls. Now, you can enjoy your favorite music and take calls while you shower!
GENERAL INFORMATION
- Units are delivered in panels and must be assembled on-site using screws, nuts, and bolts.
- It is recommended to assemble this unit inside the bathroom for convenience.
- An access panel area is advised.
Note: All shower bases may need to be set in mortar for proper leveling. It is advisable to have the base on-site before preparing the drain location.
TECHNICAL INFORMATION
- Materials: Tempered glass
- Power Supply: 20 amp, 220V
- Steam Ready Time: 2-5 minutes
- Dimensions: 43" x 31" x 86"
ELECTRICAL INFORMATION
- Requires 1 dedicated 12-2 line for steam (including line 1, line 2, and ground)
- Use a 220-volt, 20 amp GFCI breaker.
- A length of wire is provided from the main control box to connect to the power source.
PLUMBING REQUIREMENTS
- The unit includes hot and cold metal braided ½ inch water supply hoses with ½ inch national pipe thread.
- Hot and cold shutoffs with ½ inch male national pipe thread (not included) should be installed.
- Supply hoses must connect from the faucet manifold on the unit to the shutoff valves.
- All water jet features are pre-plumbed with reinforced braided flexible supply hoses.
- Ensure all fixtures and fittings are checked for tightness, as they may have loosened during transportation. An access panel is recommended.
Technical Data:
- Materials: Tempered Glass
- Power Supply: 220V, 3kW
- Steam Ready Time: 5 Minutes
- Size: 43" x 31" x 86"

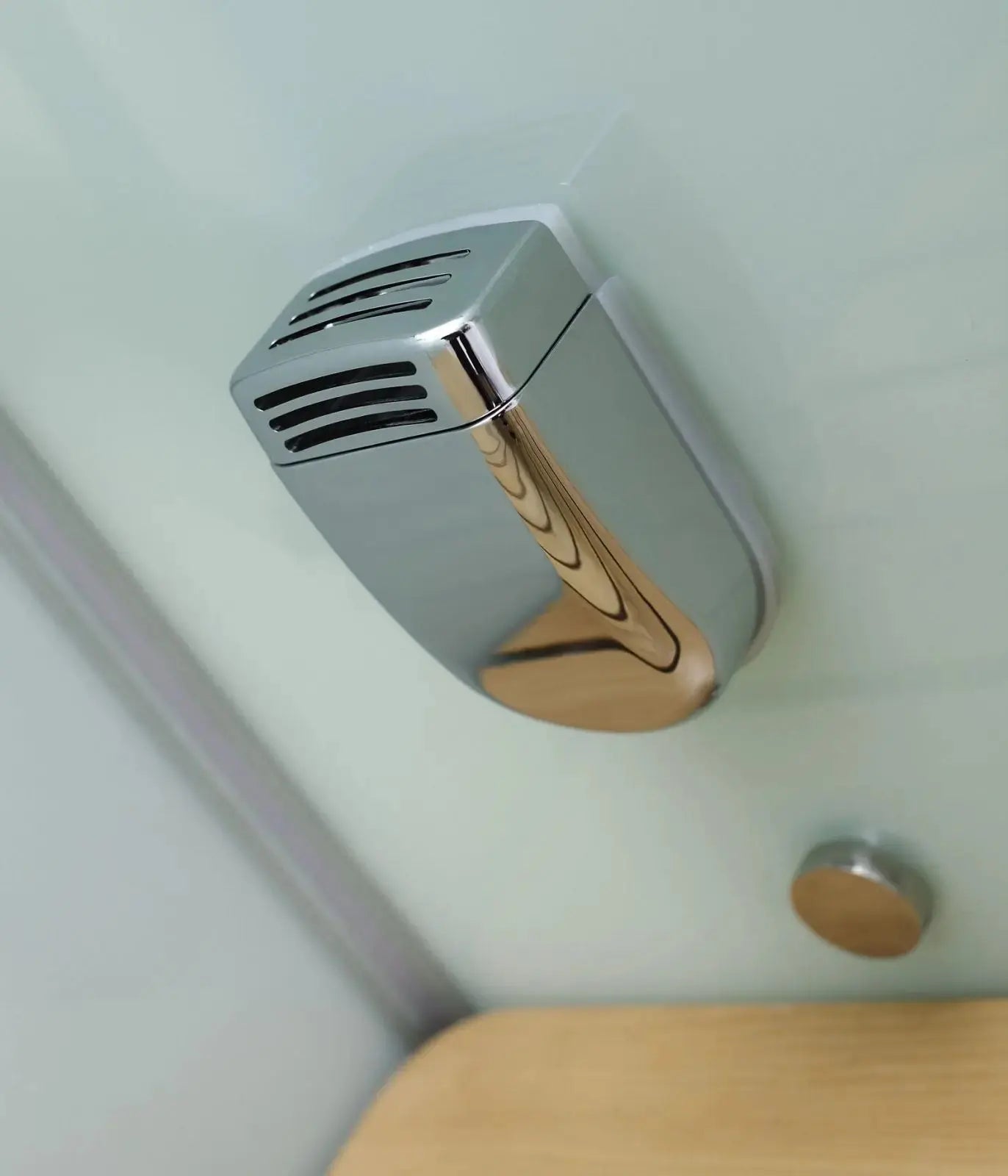

- 3.5 kW Quick-Heating Self-Draining Steam Generator with Aromatherapy Cup
- Dimensions: 43" x 31" x 86"
- Low Threshold Base: 2.75" H included
- Body Massage Jets: 8
- Drain: Left-hand
- Hand-held Shower: Various water massage settings with adjustable height bracket
- Rainfall Shower: 8" wide, water-drenching experience
- Glass Walls: “Special Process” black tempered glass with clear front glass

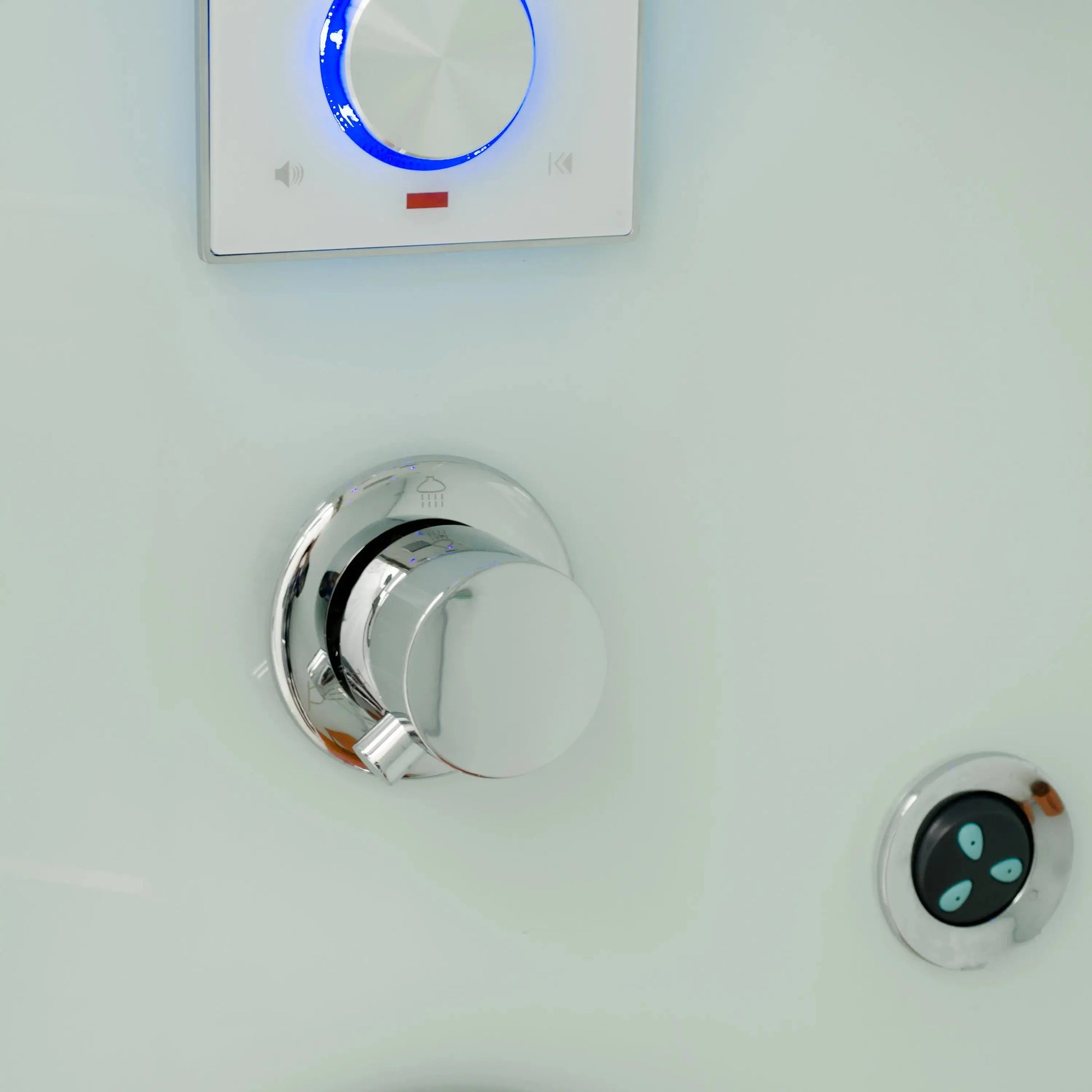

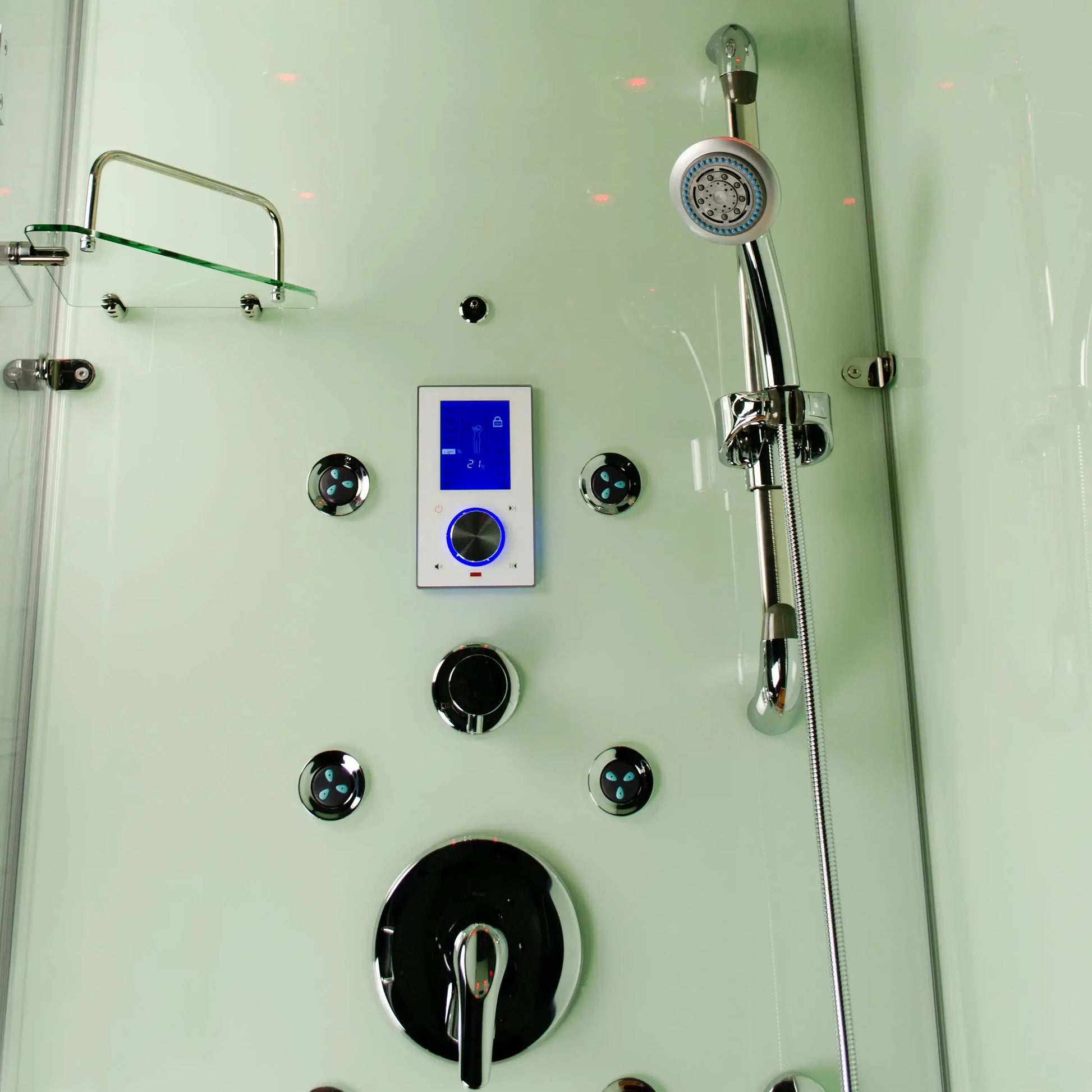

- Control System: Built-in keypad
- Entertainment Features: FM radio, Bluetooth audio, and hands-free phone calls

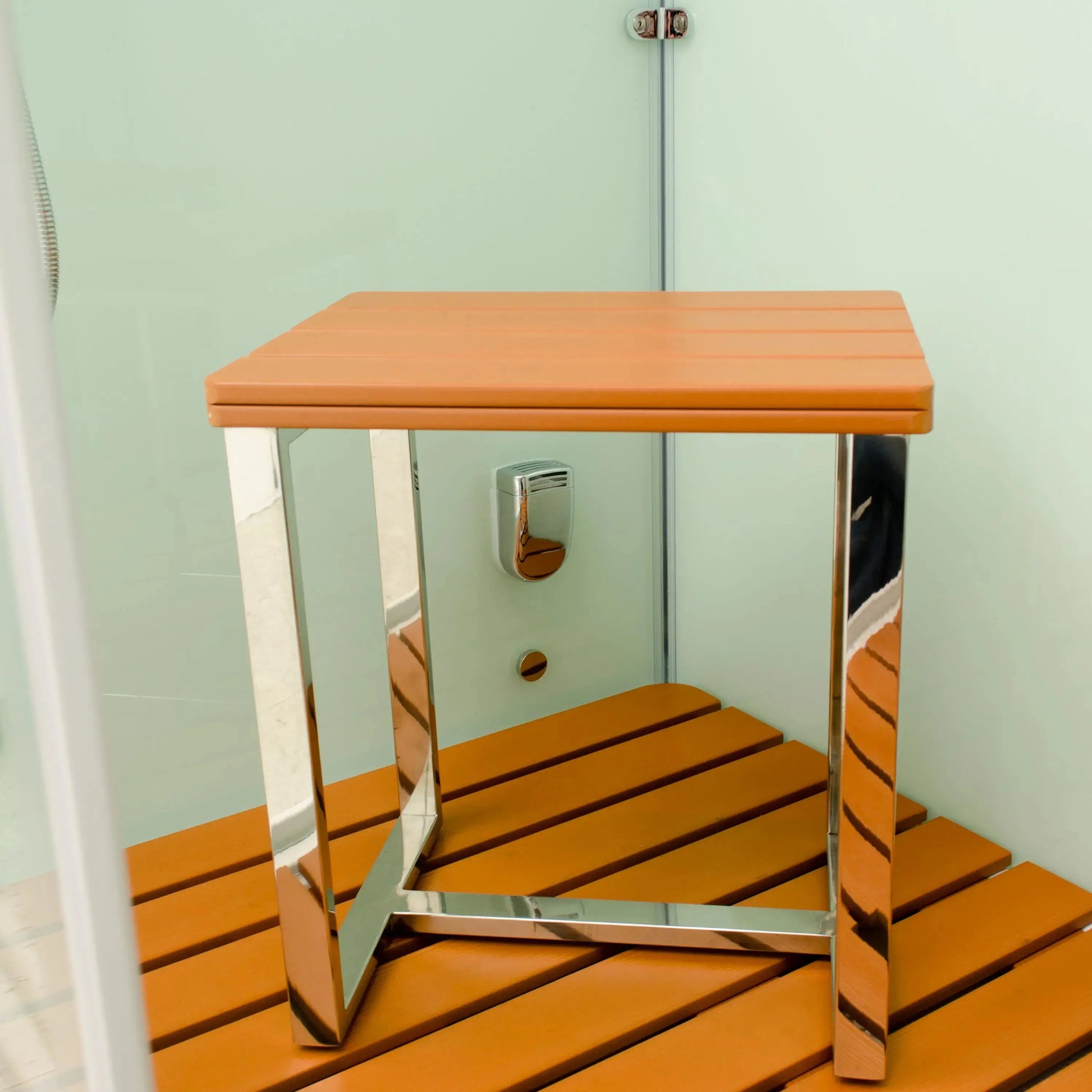

- Seating: 1 removable bench
- Storage: Accessory rack

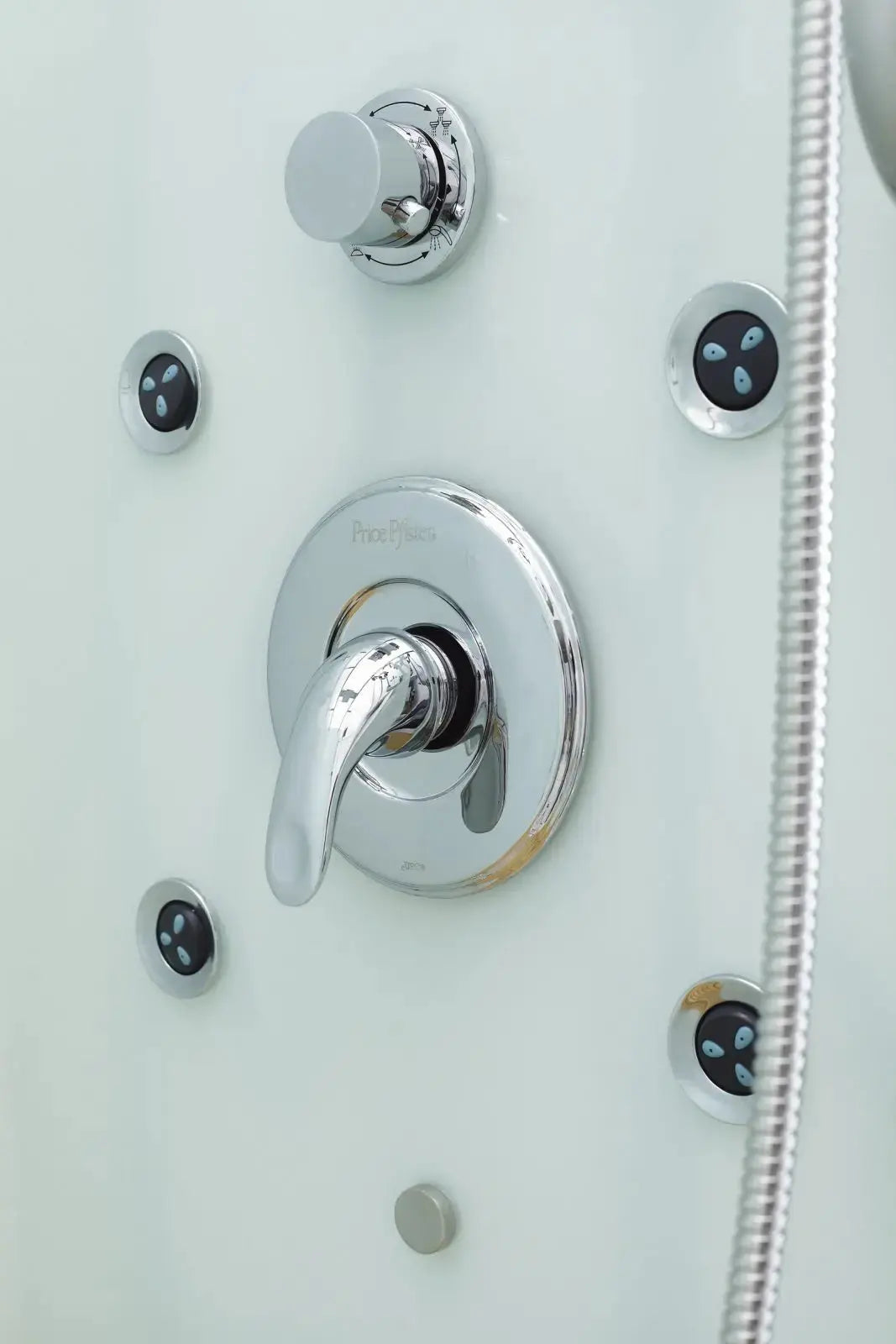

- Faucet: UPC CERTIFIED thermostatic/anti-scald, limited lifetime warranty
- Lighting: “Chromotherapy” LED with multiple color options
