Universe Plus Steam Shower
Universe Plus Steam Shower
Couldn't load pickup availability
Description
Transform your home into a luxurious spa with Homeward Bath’s premium shower and steam systems. Designed for complete relaxation, our multi-jet shower enclosure features a powerful 4.2KW steam generator for quick heating, multiple body massage jets, and an impressive 11-inch wide rainfall shower head. You’ll also enjoy a handheld shower head with adjustable settings for various spray patterns.
Stay entertained with the built-in wireless media center, allowing you to stream your favorite music, talk shows, and sports from the radio, MP3s, CDs, iPods, or your smartphone. Plus, our multi-colored LED lights enhance the aromatic steam, creating the ultimate relaxation experience.
Specifications
GENERAL INFORMATION
- Units are delivered in panels and assembled on-site using screws, nuts, and bolts.
- Assembly should take place inside the bathroom for convenience.
- An access panel near the control panel and jets is recommended.
- Note: Ensure the shower base is level in its final position, with all feet touching the ground. Mark the placement, then remove the base to begin assembly.
ELECTRICAL INFORMATION
- Requires one dedicated 12-2 wire with a 20 amp GFCI breaker.
PLUMBING REQUIREMENTS
- The unit comes with hot and cold metal braided water supply hoses featuring ½ inch national pipe threaded fittings.
- Hot and cold shutoff valves with ½ inch male national pipe thread (not included) should be installed.
- Connect the supply hoses from the faucet manifold on the unit to the shutoff valves.
- All water jet features are pre-plumbed with reinforced braided flexible supply hoses.
- Ensure all fixtures and fittings are tightened, as they may have loosened during transport.
- Note: The flexible drain hose provided is intended for installation into a floor drain only. Using a different drain setup will not void the warranty as long as there’s no evidence of misuse or damage to the base. If using a substitute drain system, a 3/8 inch stub must be added to the main shower drain line to connect the steam generator's automatic flushing drainage hose.
TECHNICAL INFORMATION
- Materials: Aluminum, tempered glass.
- Power Supply: 220V.
- Steam Ready Time: 2-5 minutes.
- Dimensions: 48" L x 48" W x 88" H.
Features
- Quick Heating: Upgraded 4.2 kW self-draining steam generator with aromatherapy cup.
- Dimensions: 48 x 48 x 90 inches.
- Massage Features: 12 body massage jets and a handheld shower with adjustable height and various water massage settings.

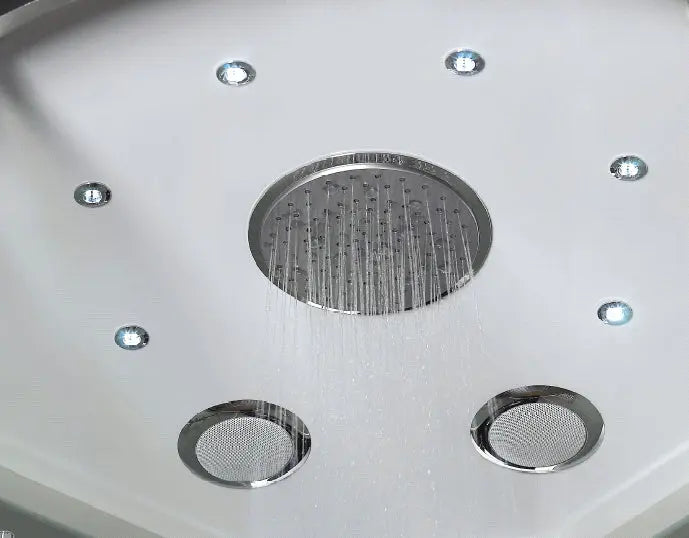

- Rainfall Shower: 11-inch wide, water-drenching rainfall shower head.
- Convenient Design: Center drain and waterproof shower grid.
- Safety Features: Thermostatic anti-scald faucet for temperature control.
- Elegant Materials: "Special Process" black tempered glass walls and clear glass front.

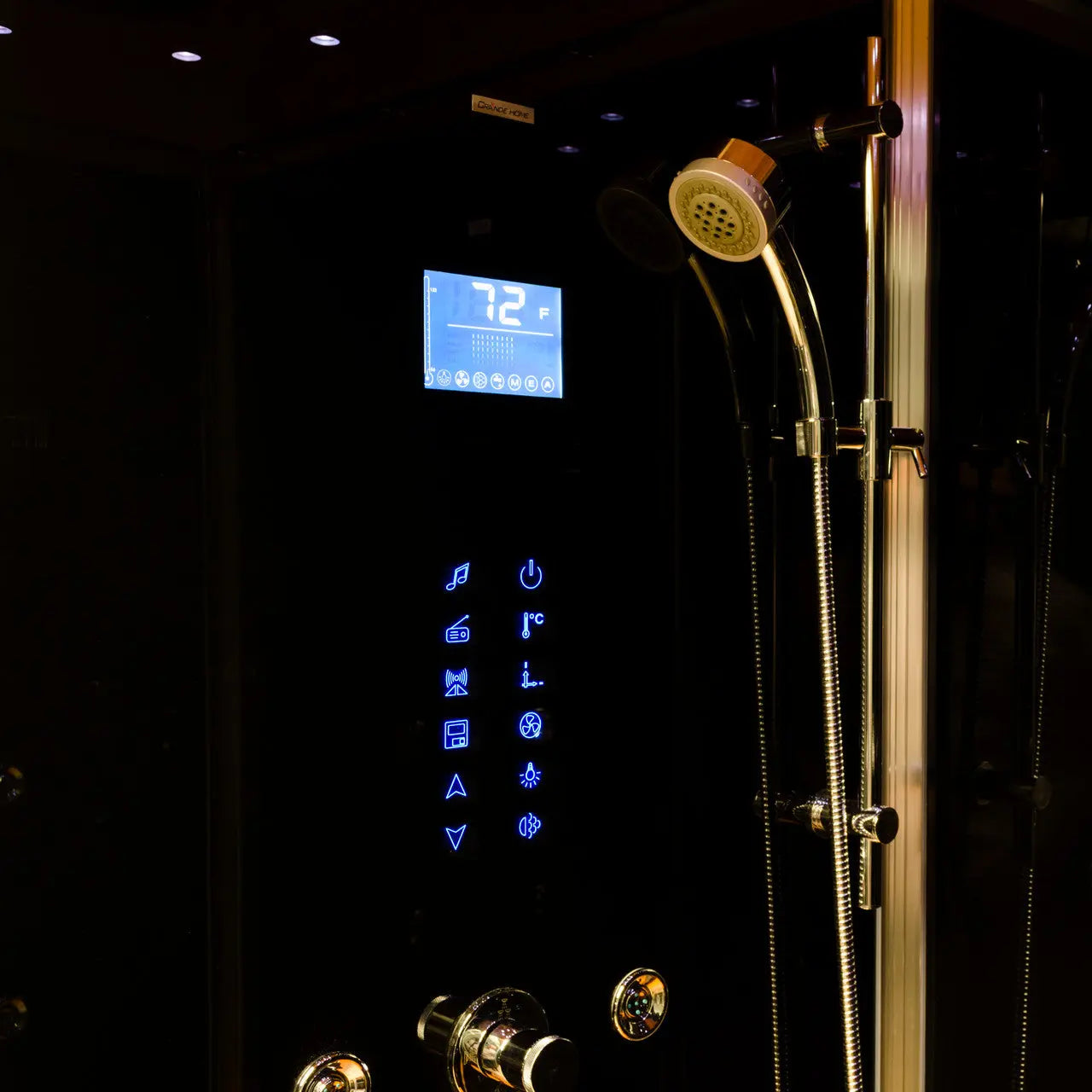

- User-Friendly Controls: "Glass Touch" control panel for easy operation.
- Entertainment: FM radio with wireless transmitter for any electronic device.
- Mood Lighting: Chromotherapy LED lights in multiple colors.
- Extras: Circulation fan and accessory rack.
- Quality Assurance: UPC certified thermostatic anti-scald faucet with a limited lifetime warranty.
- Description
- Specifications
- Features
- Dimensions
- Installation & Operation Manual
Transform your home into a luxurious spa with Homeward Bath’s premium shower and steam systems. Designed for complete relaxation, our multi-jet shower enclosure features a powerful 4.2KW steam generator for quick heating, multiple body massage jets, and an impressive 11-inch wide rainfall shower head. You’ll also enjoy a handheld shower head with adjustable settings for various spray patterns.
Stay entertained with the built-in wireless media center, allowing you to stream your favorite music, talk shows, and sports from the radio, MP3s, CDs, iPods, or your smartphone. Plus, our multi-colored LED lights enhance the aromatic steam, creating the ultimate relaxation experience.
GENERAL INFORMATION
- Units are delivered in panels and assembled on-site using screws, nuts, and bolts.
- Assembly should take place inside the bathroom for convenience.
- An access panel near the control panel and jets is recommended.
- Note: Ensure the shower base is level in its final position, with all feet touching the ground. Mark the placement, then remove the base to begin assembly.
ELECTRICAL INFORMATION
- Requires one dedicated 12-2 wire with a 20 amp GFCI breaker.
PLUMBING REQUIREMENTS
- The unit comes with hot and cold metal braided water supply hoses featuring ½ inch national pipe threaded fittings.
- Hot and cold shutoff valves with ½ inch male national pipe thread (not included) should be installed.
- Connect the supply hoses from the faucet manifold on the unit to the shutoff valves.
- All water jet features are pre-plumbed with reinforced braided flexible supply hoses.
- Ensure all fixtures and fittings are tightened, as they may have loosened during transport.
- Note: The flexible drain hose provided is intended for installation into a floor drain only. Using a different drain setup will not void the warranty as long as there’s no evidence of misuse or damage to the base. If using a substitute drain system, a 3/8 inch stub must be added to the main shower drain line to connect the steam generator's automatic flushing drainage hose.
TECHNICAL INFORMATION
- Materials: Aluminum, tempered glass.
- Power Supply: 220V.
- Steam Ready Time: 2-5 minutes.
- Dimensions: 48" L x 48" W x 88" H.
- Quick Heating: Upgraded 4.2 kW self-draining steam generator with aromatherapy cup.
- Dimensions: 48 x 48 x 90 inches.
- Massage Features: 12 body massage jets and a handheld shower with adjustable height and various water massage settings.
- Rainfall Shower: 11-inch wide, water-drenching rainfall shower head.
- Convenient Design: Center drain and waterproof shower grid.
- Safety Features: Thermostatic anti-scald faucet for temperature control.
- Elegant Materials: "Special Process" black tempered glass walls and clear glass front.
- User-Friendly Controls: "Glass Touch" control panel for easy operation.
- Entertainment: FM radio with wireless transmitter for any electronic device.
- Mood Lighting: Chromotherapy LED lights in multiple colors.
- Extras: Circulation fan and accessory rack.
- Quality Assurance: UPC certified thermostatic anti-scald faucet with a limited lifetime warranty.
