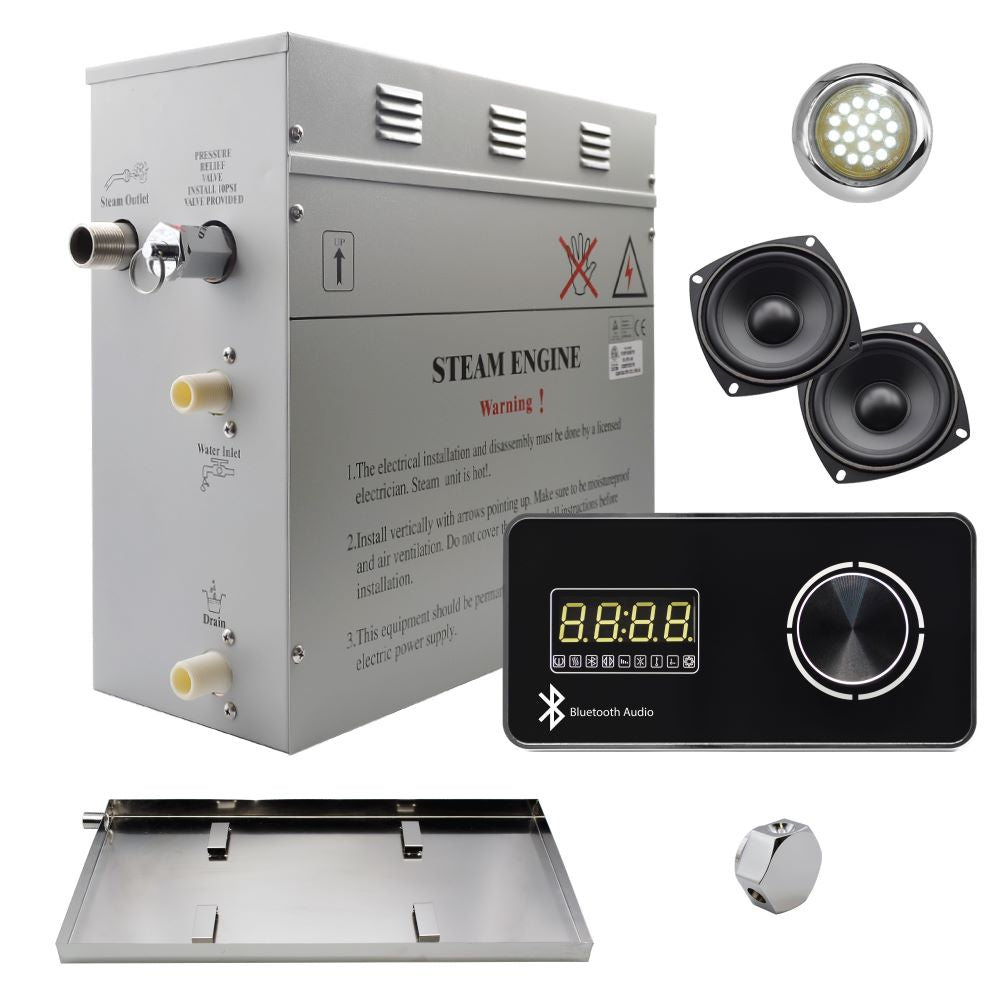

Steam Planet Superior Encore Plus 6kw Self-Draining Steam Bath Generator with Bluetooth Horizontal Digital Keypad in Black, Drip Pan and White Light
Steam Planet Superior Encore Plus 6kw Self-Draining Steam Bath Generator with Bluetooth Horizontal Digital Keypad in Black, Drip Pan and White Light
Couldn't load pickup availability
Description
Steam Planet is excited to launch our new Steam Generator Series! The Superior Encore has been reengineered with multiple enhancements for simpler installation. Our upgraded keypads now feature a built-in thermostat, eliminating the need for additional holes for the temperature probe. We've also significantly improved the power cord for quicker and easier keypad connections. The Superior Encore Steam Generator includes an Auto-Drain feature for consistently fresh and healthy steam, and it is ETL Certified.
Features
- Certification: ETL certified for safety and performance

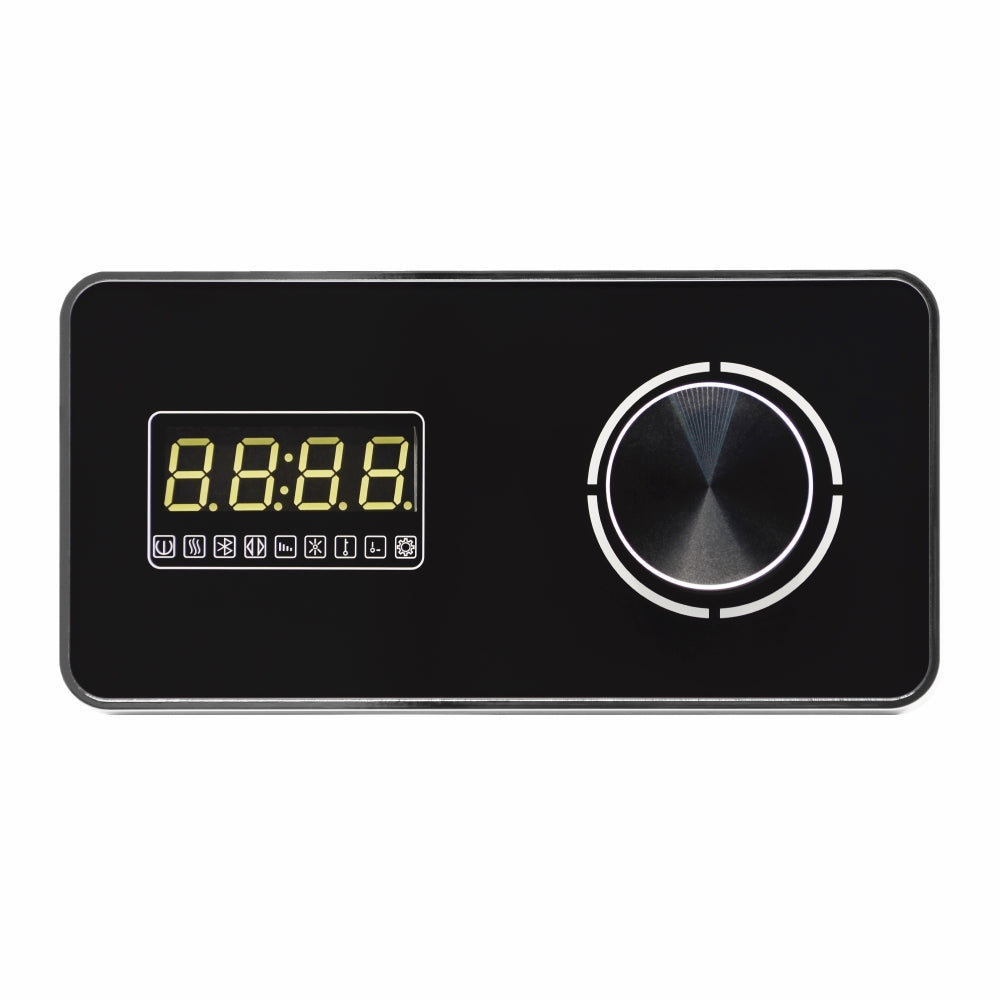

- Keypad: Encore Plus Horizontal Digital Keypad in Black
- Bluetooth Audio: Connect your phone to enjoy your favorite music
- Installation: Upgraded keypad connection cord for faster and easier installation
- Mounting Options: Keypad can be mounted inside or outside of the steam shower
- Temperature Sensor: Built-in temperature sensor in the Encore Keypad
- Aromatherapy: Single ¾" aromatherapy steam outlet

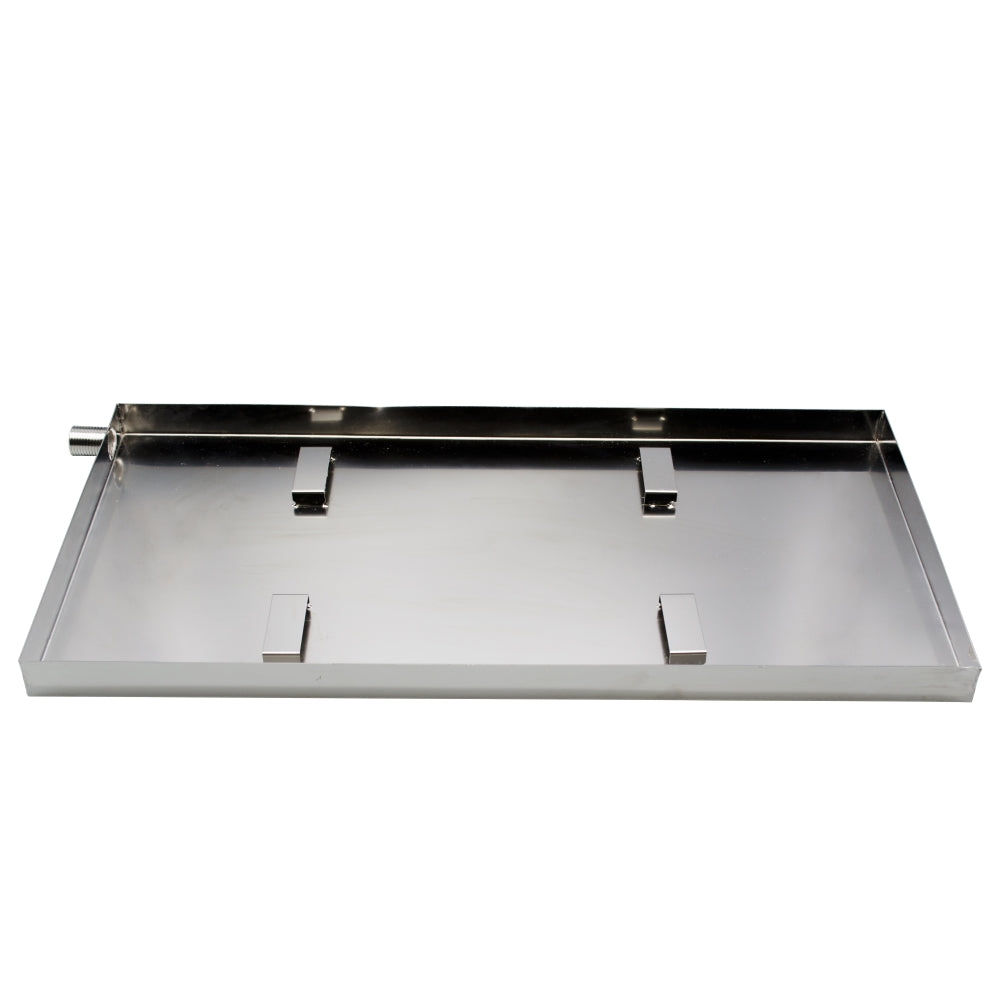

- Drip Pan: Includes drip pan to catch and drain any water leaks from generator fittings
- Lighting: 1 White LED light included
- Electrical Requirements: Requires 220-volt/10-2 wire with a 30-amp GFCI breaker (2 hot lines and 1 ground line)
- Light Output: 12V light output wire included
- Steam Room Capacity: Suitable for steam rooms with a capacity of 140 to 320 ft³
- Water Requirements: Water inlet and drain valves require ½ inch NPT fittings
-
Size Calculation: To confirm the exact size of the generator needed, use the following calculation:
length(ft.)xwidth(ft.)xheight(ft.) x 2.
Technical Information
- Dimensions: 19 ½”L x 6 ½”W x 14 ½”H
- Steam outlet: single ¾" outlet
- Cubic footage steam room: 140-320 ft3
- 20 feet of connecting wire for control panel
- 12 V light output wire
- 220-volt/10-2 wire-30amp GFCI breaker (2 hot lines and 1 ground line)
- Water inlet and drain valves require ½ in. NPT fillings
- Description
- Features
- Technical Information
- Installation & Operation Manual
Steam Planet is excited to launch our new Steam Generator Series! The Superior Encore has been reengineered with multiple enhancements for simpler installation. Our upgraded keypads now feature a built-in thermostat, eliminating the need for additional holes for the temperature probe. We've also significantly improved the power cord for quicker and easier keypad connections. The Superior Encore Steam Generator includes an Auto-Drain feature for consistently fresh and healthy steam, and it is ETL Certified.
- Certification: ETL certified for safety and performance
- Keypad: Encore Plus Horizontal Digital Keypad in Black
- Bluetooth Audio: Connect your phone to enjoy your favorite music
- Installation: Upgraded keypad connection cord for faster and easier installation
- Mounting Options: Keypad can be mounted inside or outside of the steam shower
- Temperature Sensor: Built-in temperature sensor in the Encore Keypad
- Aromatherapy: Single ¾" aromatherapy steam outlet
- Drip Pan: Includes drip pan to catch and drain any water leaks from generator fittings
- Lighting: 1 White LED light included
- Electrical Requirements: Requires 220-volt/10-2 wire with a 30-amp GFCI breaker (2 hot lines and 1 ground line)
- Light Output: 12V light output wire included
- Steam Room Capacity: Suitable for steam rooms with a capacity of 140 to 320 ft³
- Water Requirements: Water inlet and drain valves require ½ inch NPT fittings
-
Size Calculation: To confirm the exact size of the generator needed, use the following calculation:
length(ft.)xwidth(ft.)xheight(ft.) x 2.
- Dimensions: 19 ½”L x 6 ½”W x 14 ½”H
- Steam outlet: single ¾" outlet
- Cubic footage steam room: 140-320 ft3
- 20 feet of connecting wire for control panel
- 12 V light output wire
- 220-volt/10-2 wire-30amp GFCI breaker (2 hot lines and 1 ground line)
- Water inlet and drain valves require ½ in. NPT fillings
