Steam Planet Superior Encore 6kw Self-Draining Steam Bath Generator Kit with Horizontal Digital Keypad in Black and a Drip Pan

Description

Steam Planet is excited to launch our new Steam Generator Series! The Superior Encore has been reengineered with multiple enhancements for simpler installation. Our upgraded keypads now feature a built-in thermostat, eliminating the need for additional holes for the temperature probe. We've also significantly improved the power cord for quicker and easier keypad connections. The Superior Encore Steam Generator includes an Auto-Drain feature for consistently fresh and healthy steam, and it is ETL Certified.

Features

• 6kW Self-Draining Steam Generator
• ETL Certified for safety
• Encore Horizontal Digital Keypad in Black
• Upgraded keypad connection cord for quicker and easier installation
• Keypad can be mounted either inside or outside the steam shower
• Encore Keypad features a built-in temperature sensor
• Aromatherapy steam outlet: single ¾" outlet

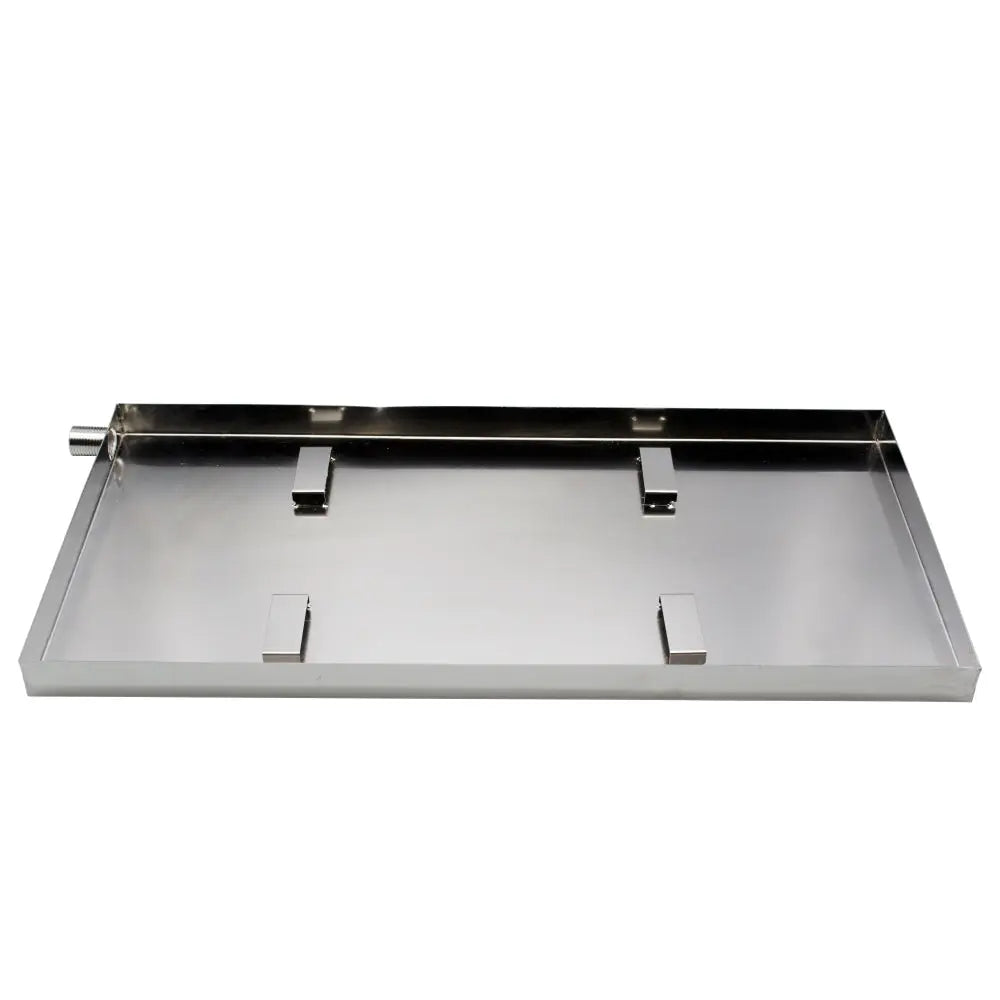

• Drip pan to catch and drain any water leaks from generator fittings
• Requires a 220-volt/10-2 wire with a 30-amp GFCI breaker (2 hot lines and 1 ground)
• Includes a 12V light output wire
• Suitable for steam rooms with a capacity of 140 to 320 ft³
• Water inlet and drain valves require ½ inch NPT fittings
• To determine the correct generator size needed, use the formula: [length (ft.) x width (ft.) x height (ft.)] x 2.

Technical Information

• Dimensions: 19 ½”L x 6 ½”W x 14 ½”H
• Steam outlet: single ¾" outlet
• Cubic footage steam room: 140-320 ft3
• 20 feet of connecting wire for control panel
• 12 V light output wire
• 220-volt/10-2 wire-30amp GFCI breaker (2 hot lines and 1 ground line)
• Water inlet and drain valves require ½ in. NPT fillings
