Black Jupiter-L Steam Shower
Black Jupiter-L Steam Shower
Couldn't load pickup availability
Description
Luxury Steam Showers proudly presents the Jupiter Steam Shower. This one-person steam and shower enclosure features a Quick-Heating 3.5 kW Steam Generator with an Auto Drain, ensuring a rapid steaming process with fresh water every time you opt for the steam feature. If you're a music enthusiast or love listening to your favorite podcasts on the go, the Jupiter Steam Shower is perfect for you! It includes a Bluetooth audio system and supports hands-free incoming phone calls—just connect your phone and you're all set! Additionally, the Jupiter Steam Shower is equipped with multi-colored LED lights that illuminate the aromatherapy-infused steam, creating the ultimate relaxation experience.
Specifications
GENERAL INFORMATION
- Units are delivered in panels and are assembled on-site using screws, nuts, and bolts.
- For convenience, this unit should be assembled inside the bathroom.
- An access panel area is recommended.
Note:
All shower bases may need to be set in mortar for leveling. It’s advisable to have the base on-site before preparing the drain location.
TECHNICAL INFORMATION
- Materials: Tempered glass
- Power Supply: 20 amp, 220V
- Steam Ready Time: 2-5 minutes
- Dimensions: 35" x 35" x 86"
ELECTRICAL INFORMATION
- Requires one dedicated 12-2 line for steam (line 1, line 2, and ground).
- Uses a 220-volt, 20 amp GFCI breaker.
- A length of wire from the main control box is supplied to connect to the power source.
PLUMBING REQUIREMENTS
- The unit includes hot and cold metal braided ½ inch water supply hoses with ½ inch national pipe thread.
- Hot and cold shutoffs (½ inch male national pipe thread, not included) should be installed.
- Supply hoses must be connected from the faucet manifold on the unit to the shutoff valves.
- All water jet features are pre-plumbed with reinforced braided flexible supply hoses.
- Check all fixtures and fittings for tightness, as they may have loosened during transportation. An access panel is recommended.
TECHNICAL DATA
- Materials: Tempered glass
- Power Supply: 220V, 3KW
- Steam Ready Time: 5 minutes
- Size: 35" x 35" x 86"
Features
- 3.5 kW Quick Heating Self-Draining Steam Generator with Aromatherapy Cup
- Dimensions: 35" x 35" x 86"
- Low Threshold: 2.75" H base included
- Massage Jets: 8 body massage jets
- Drain: Left-hand drain
- Handheld Shower: Various water massage settings with an adjustable height bracket
- Rainfall Shower: 8" wide water-drenching rainfall shower
- Glass: "Special Process" black tempered glass walls with a clear glass front

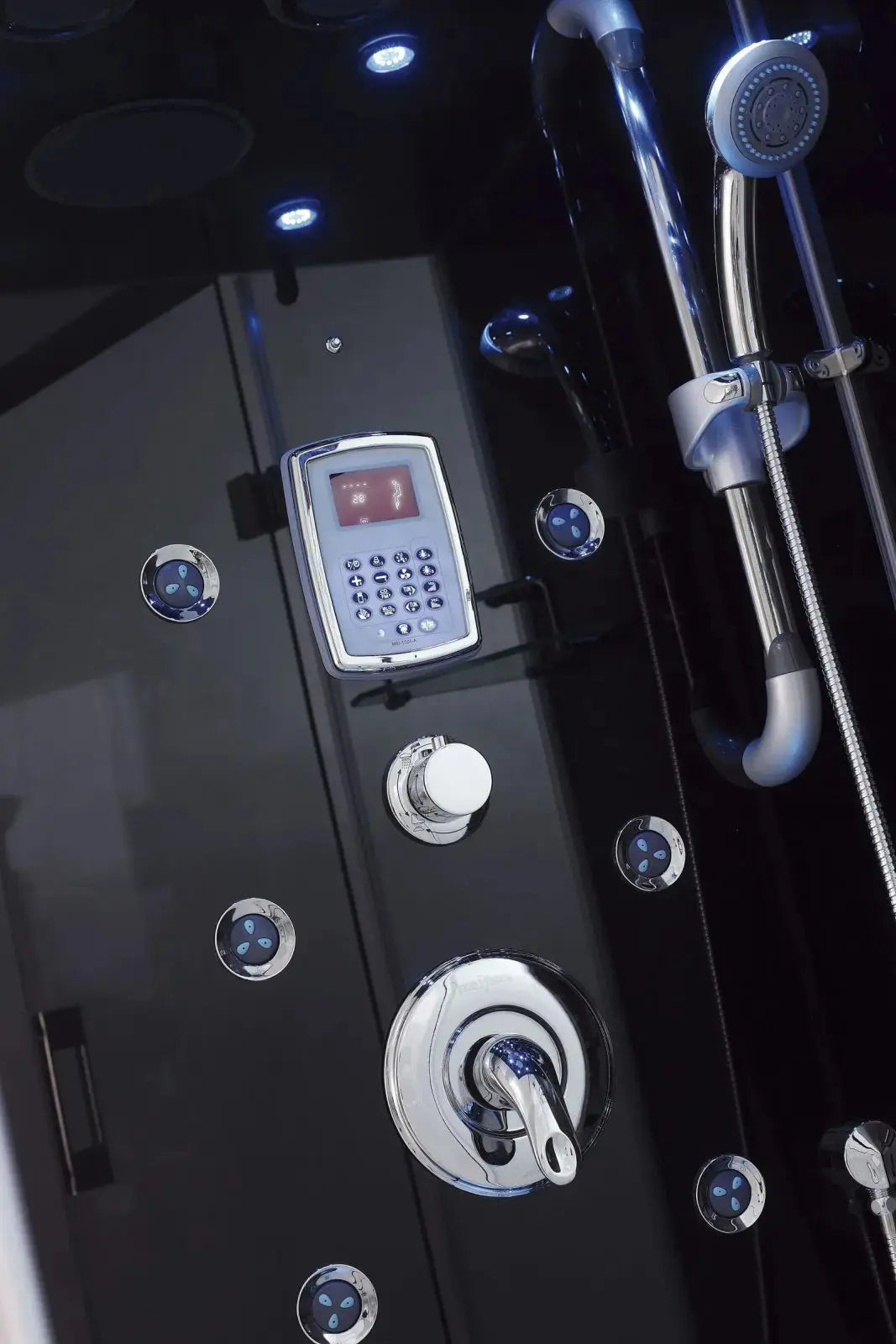

- Controls: Built-in control keypad
- Entertainment: FM radio, Bluetooth audio, and hands-free phone calls
- Seating: 1 removable bench
- Storage: Accessory rack
- Faucet: UPC CERTIFIED thermostatic/anti-scald faucet - LIMITED LIFETIME WARRANTY

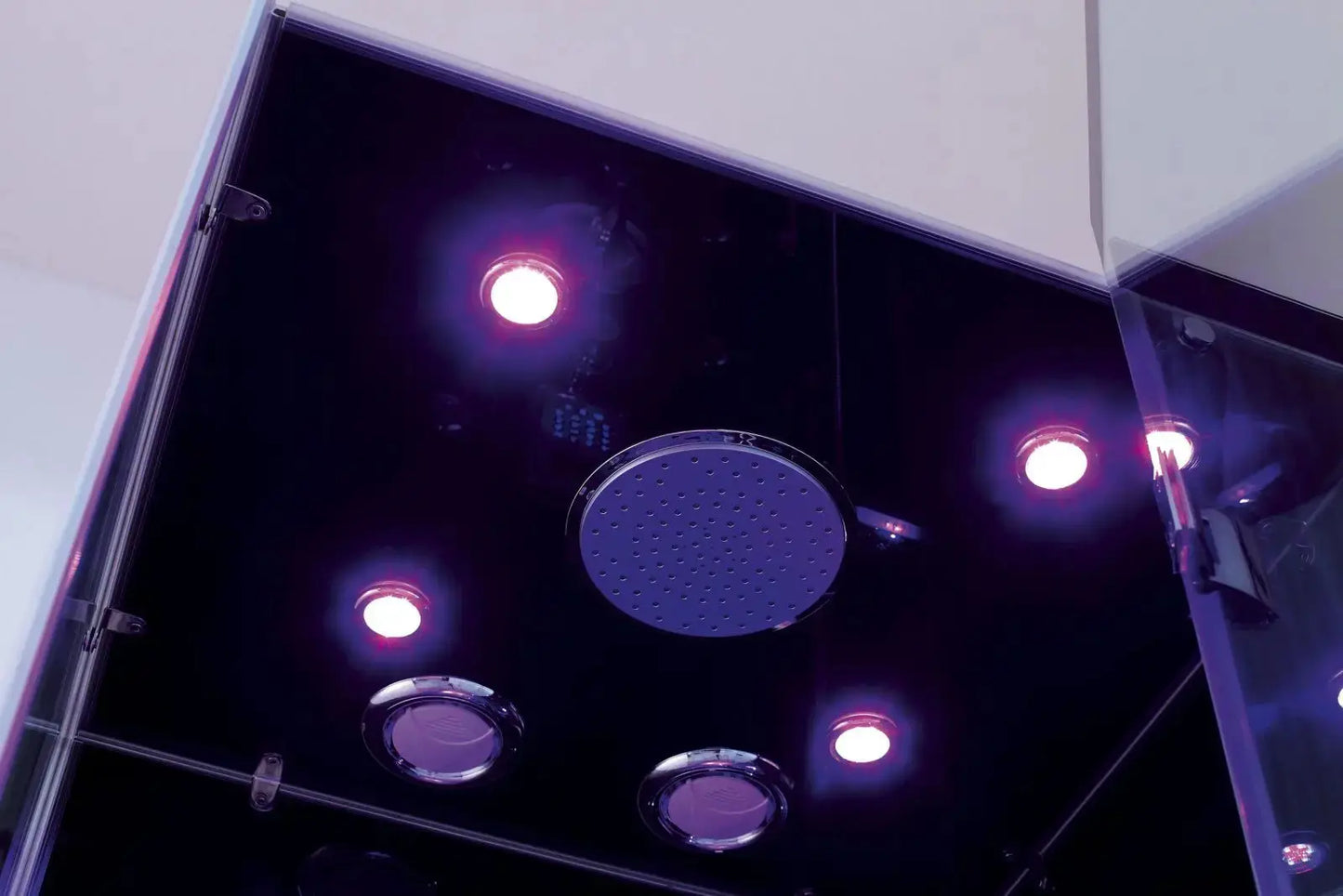

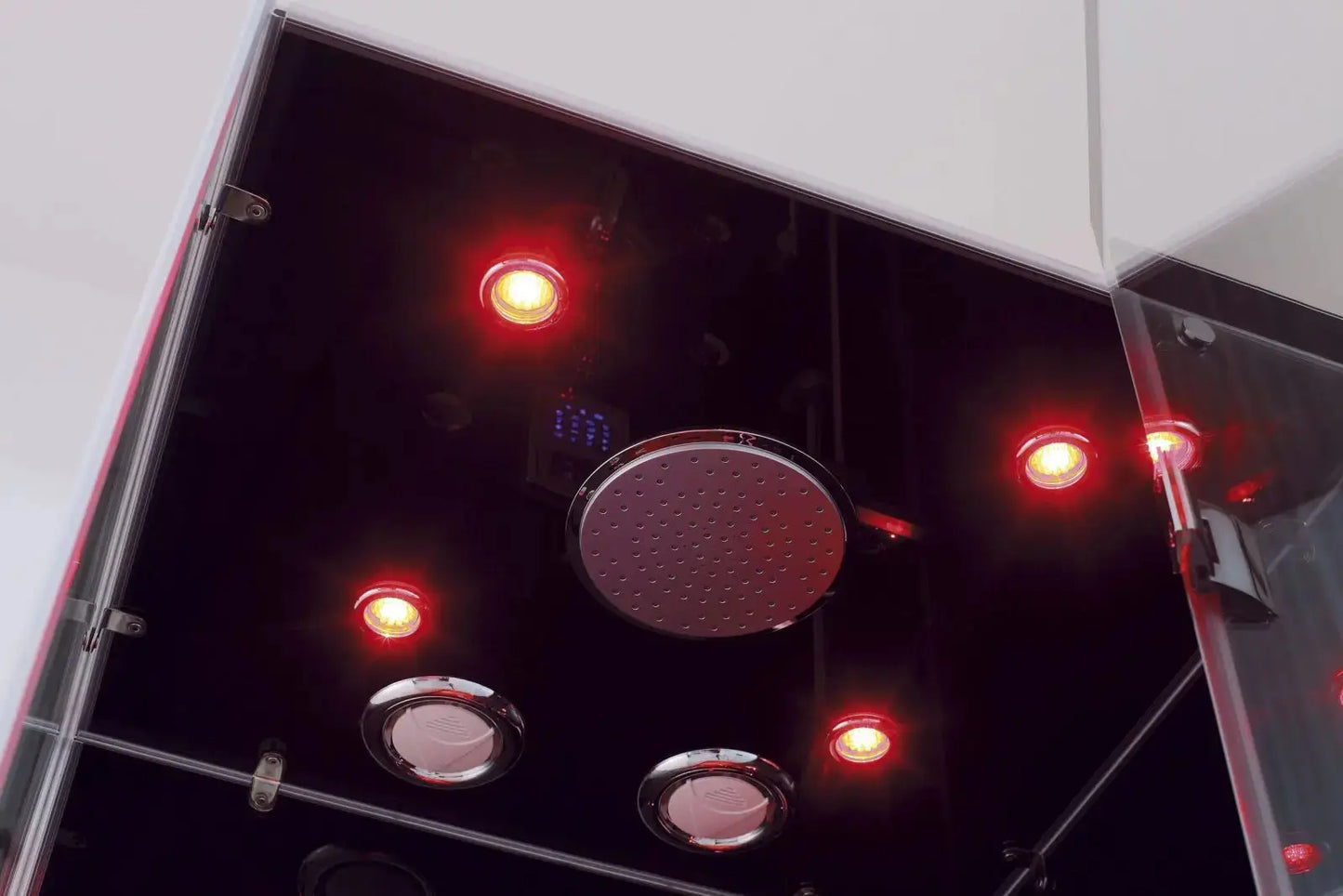

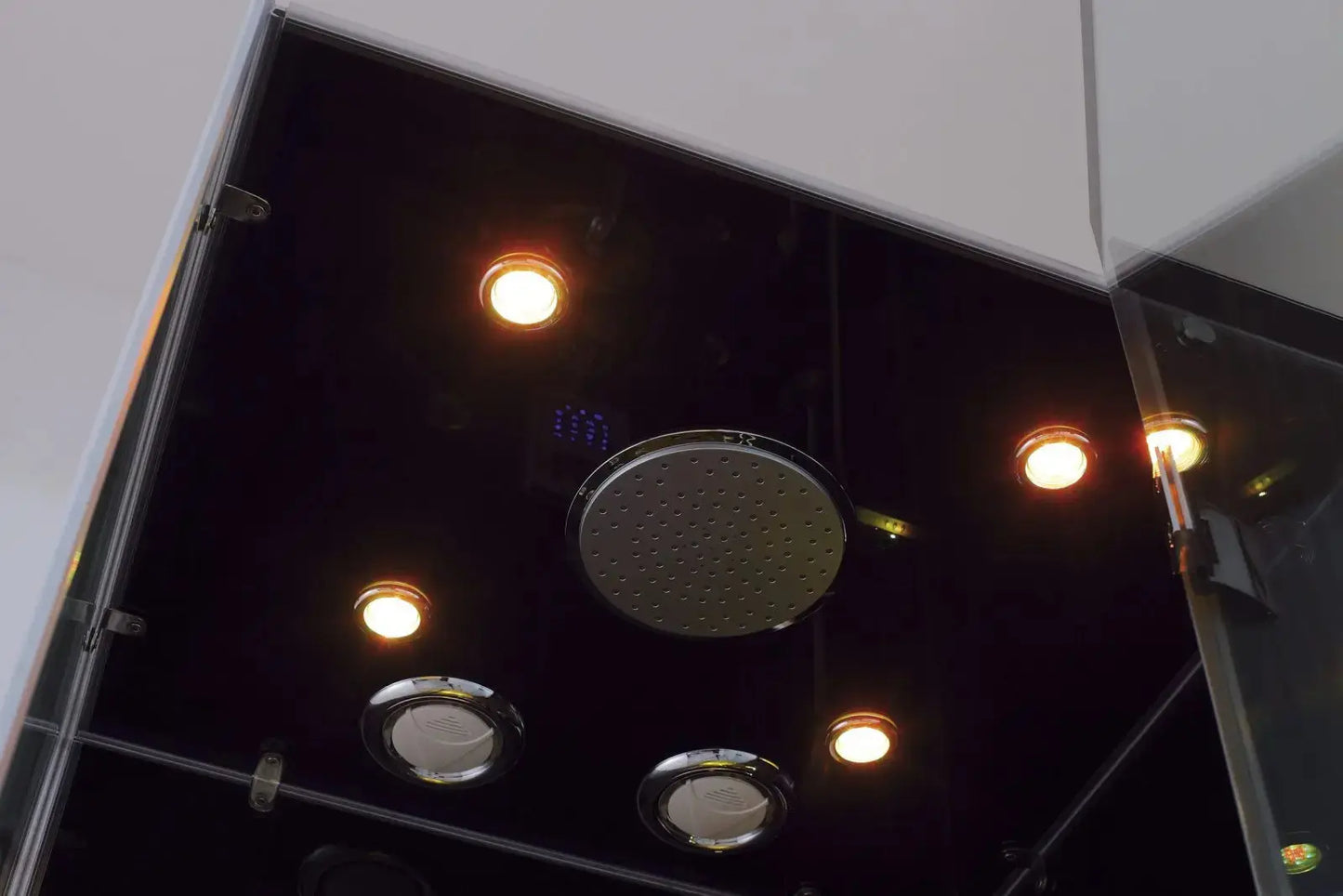

- Lighting: "Chromotherapy" LED multi-color lighting
- Description
- Specifications
- Features
- Dimensions
- Installation & Operation Manual
Luxury Steam Showers proudly presents the Jupiter Steam Shower. This one-person steam and shower enclosure features a Quick-Heating 3.5 kW Steam Generator with an Auto Drain, ensuring a rapid steaming process with fresh water every time you opt for the steam feature. If you're a music enthusiast or love listening to your favorite podcasts on the go, the Jupiter Steam Shower is perfect for you! It includes a Bluetooth audio system and supports hands-free incoming phone calls—just connect your phone and you're all set! Additionally, the Jupiter Steam Shower is equipped with multi-colored LED lights that illuminate the aromatherapy-infused steam, creating the ultimate relaxation experience.
GENERAL INFORMATION
- Units are delivered in panels and are assembled on-site using screws, nuts, and bolts.
- For convenience, this unit should be assembled inside the bathroom.
- An access panel area is recommended.
Note:
All shower bases may need to be set in mortar for leveling. It’s advisable to have the base on-site before preparing the drain location.
TECHNICAL INFORMATION
- Materials: Tempered glass
- Power Supply: 20 amp, 220V
- Steam Ready Time: 2-5 minutes
- Dimensions: 35" x 35" x 86"
ELECTRICAL INFORMATION
- Requires one dedicated 12-2 line for steam (line 1, line 2, and ground).
- Uses a 220-volt, 20 amp GFCI breaker.
- A length of wire from the main control box is supplied to connect to the power source.
PLUMBING REQUIREMENTS
- The unit includes hot and cold metal braided ½ inch water supply hoses with ½ inch national pipe thread.
- Hot and cold shutoffs (½ inch male national pipe thread, not included) should be installed.
- Supply hoses must be connected from the faucet manifold on the unit to the shutoff valves.
- All water jet features are pre-plumbed with reinforced braided flexible supply hoses.
- Check all fixtures and fittings for tightness, as they may have loosened during transportation. An access panel is recommended.
TECHNICAL DATA
- Materials: Tempered glass
- Power Supply: 220V, 3KW
- Steam Ready Time: 5 minutes
- Size: 35" x 35" x 86"
- 3.5 kW Quick Heating Self-Draining Steam Generator with Aromatherapy Cup
- Dimensions: 35" x 35" x 86"
- Low Threshold: 2.75" H base included
- Massage Jets: 8 body massage jets
- Drain: Left-hand drain
- Handheld Shower: Various water massage settings with an adjustable height bracket
- Rainfall Shower: 8" wide water-drenching rainfall shower
- Glass: "Special Process" black tempered glass walls with a clear glass front
- Controls: Built-in control keypad
- Entertainment: FM radio, Bluetooth audio, and hands-free phone calls
- Seating: 1 removable bench
- Storage: Accessory rack
- Faucet: UPC CERTIFIED thermostatic/anti-scald faucet - LIMITED LIFETIME WARRANTY
- Lighting: "Chromotherapy" LED multi-color lighting
